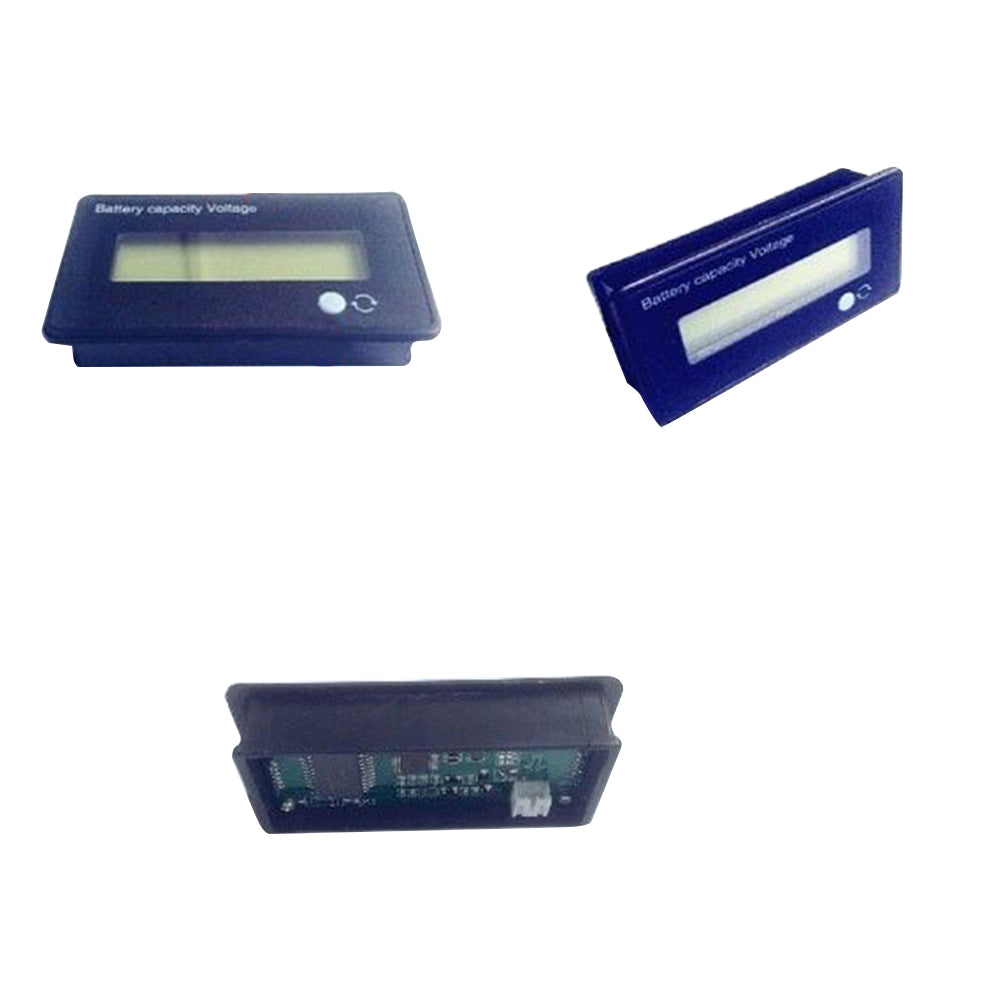

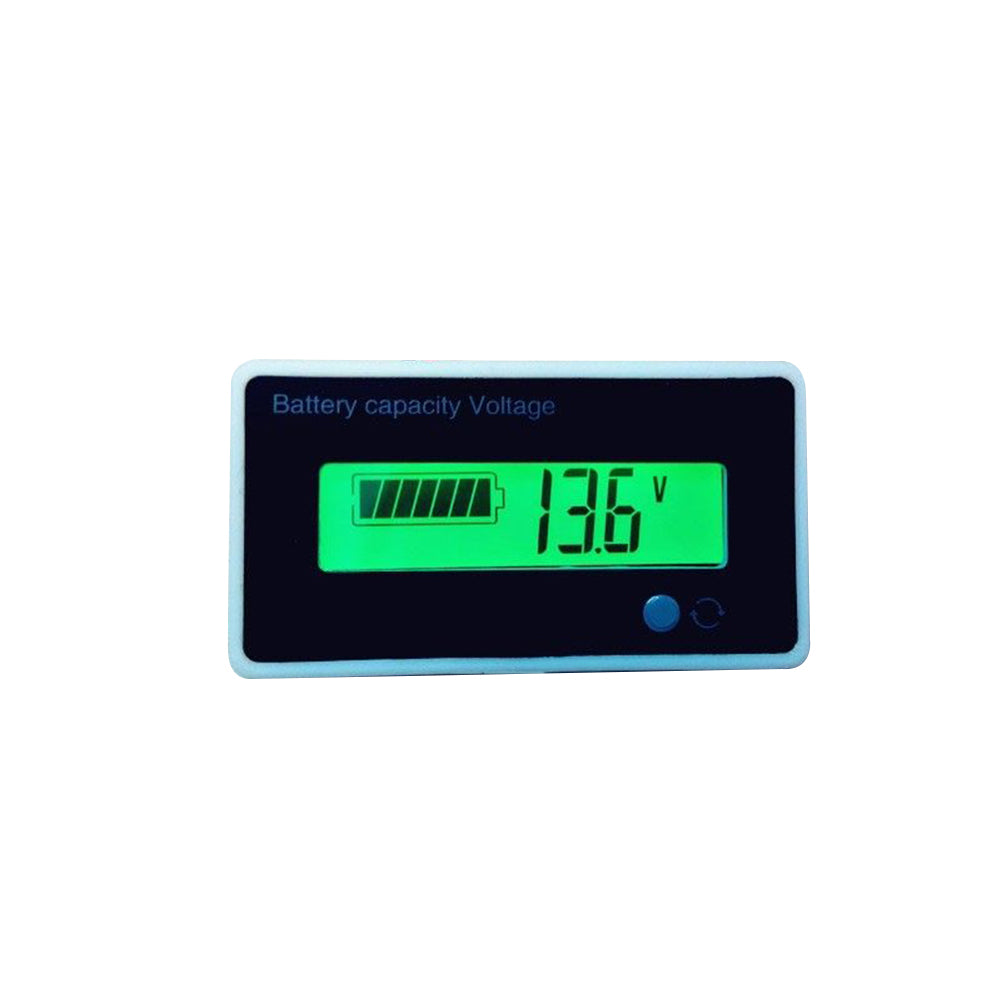

12V Acid Lead Batteries Indicator Lithium Battery Capacity Digital Voltmeter

Specification:

Touch switch button, perfect feel.

Dual IC integrated circuit control, more stable.



Instructions:

Keep pressing the button on the front of the panel before you connect it to your battery.

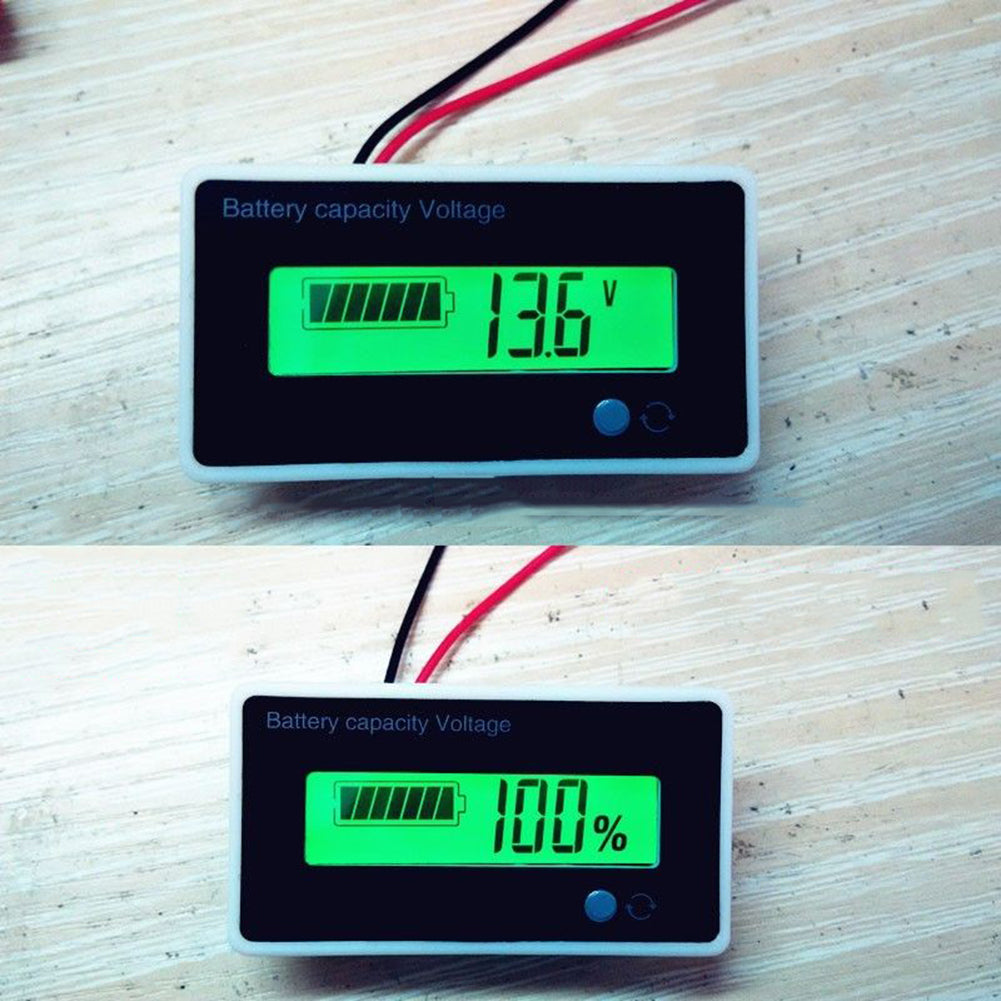

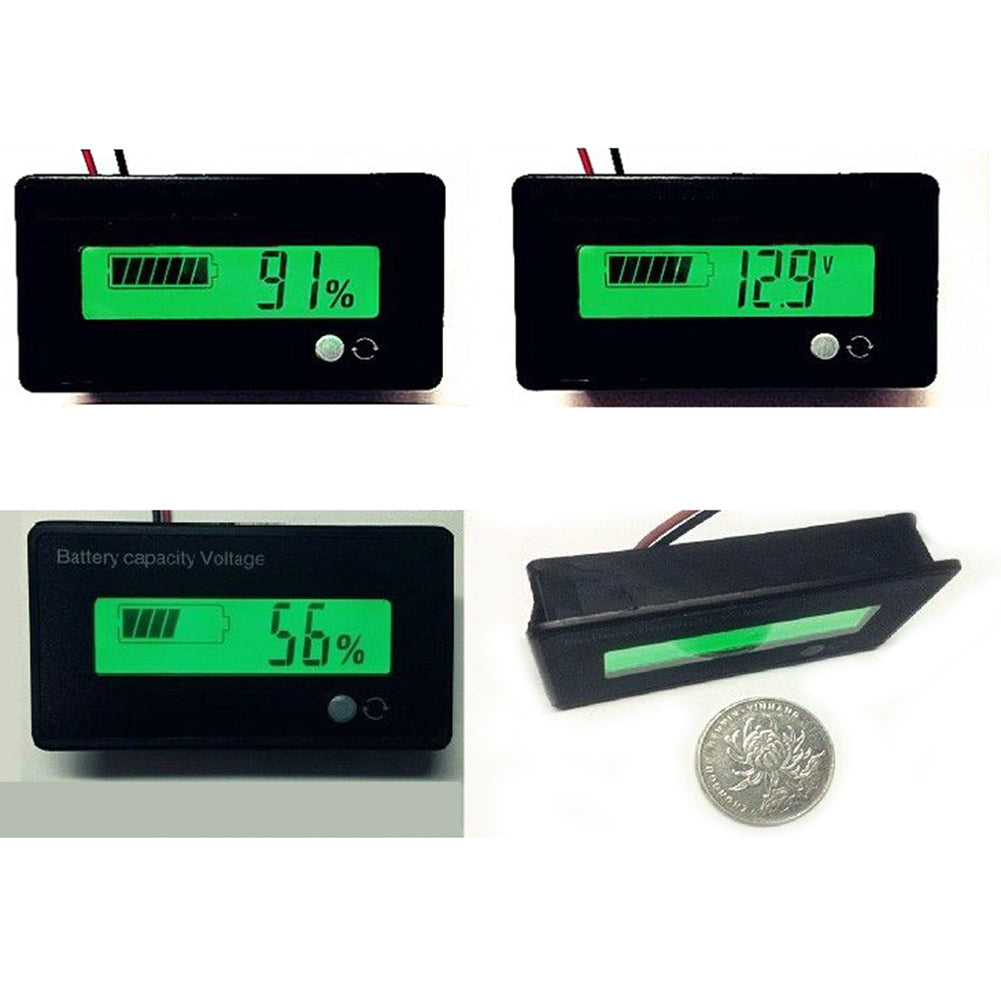

The display start with L means it is for testing lithium battery, start with P means it is for testing lead acid battery.

For example, if your battery is 24V, then just keep press the button to P 24V, 46V is similar to 48V, just switch to P 48V.



Type: Battery Capacity/Voltage Tester

Case Color: Black

Light Color: Green

Voltage Range: 8V - 70V (Reverse Protection)

Operating Current: Backlighting 5MA - 6MA (Low power automatically turn off the lights)

Suitable for: Lead-acid 12V, 24V, 36V, 48V (Can be changed via key, please see set up instructions as below.)

Defaults to: 12V Lead-acid

Suitable for 3.7V Lithium Series Multi-platform, 3 String - 4 String(Can be changed via key, please see set up instructions as below.)

Size: 61.3mm x 33.3mm x 13.5mm/2.41" x 1.31" x 0.53" (Approx.)

Features: Longer Service Life, Reverse Protection

Code Suitable for: L3: 3 String Lithium

L4: 4 String Lithium

L5: 5 String Lithium

L6: 6 String Lithium

L7: 7 String Lithium

L8: 8 String Lithium

L9: 9 String Lithium

L10: 10 String Lithium

L11: 11 String Lithium

L12: 12 String Lithium

L13: 13 String Lithium

L14: 14 String Lithium

P12V: 12V Lead-acid

P24V: 24V Lead-acid

P36V: 36V Lead-acid

P48V: 48V Lead-acid



Notes:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.



Package Includes:

1 x Battery Capacity/Voltage Tester

1 x Cable
