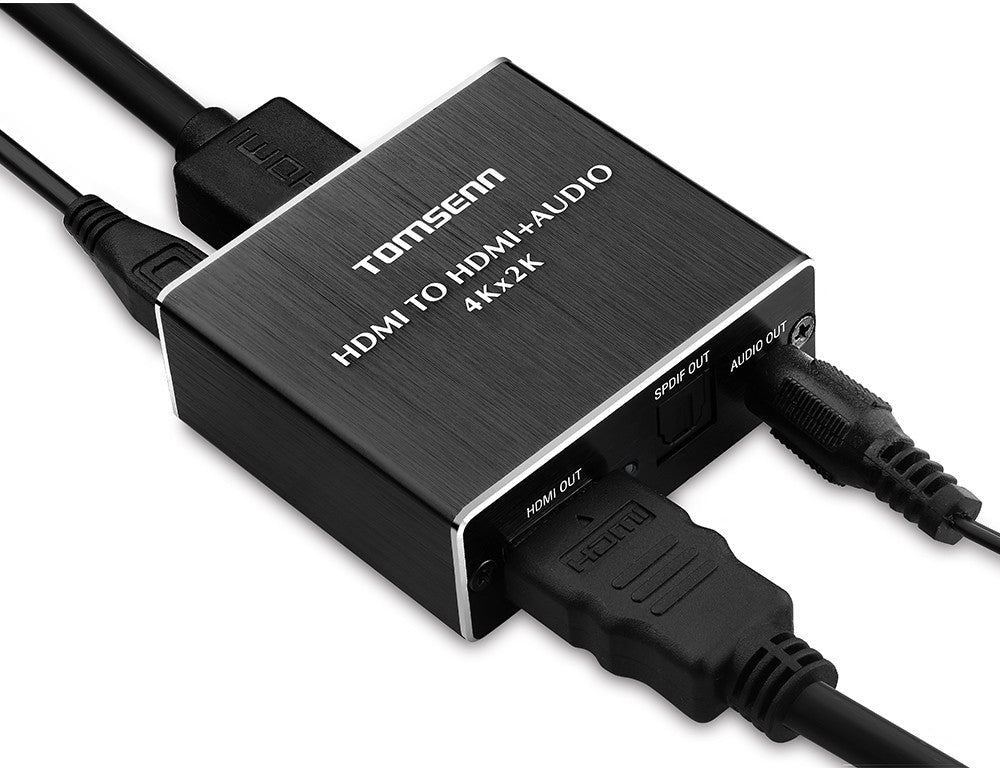

HDMI audio extractor HDMI TO HDMI Adio converter HDMI TO spdif HDMI V1.4,support 4K*2K

This HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm  L/R analog output and SPDIF output at the same time. The RCA L/R and SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH(NOT support Dolby Digital Plus)

Tomsenn Hdmi Sound extractor Features:

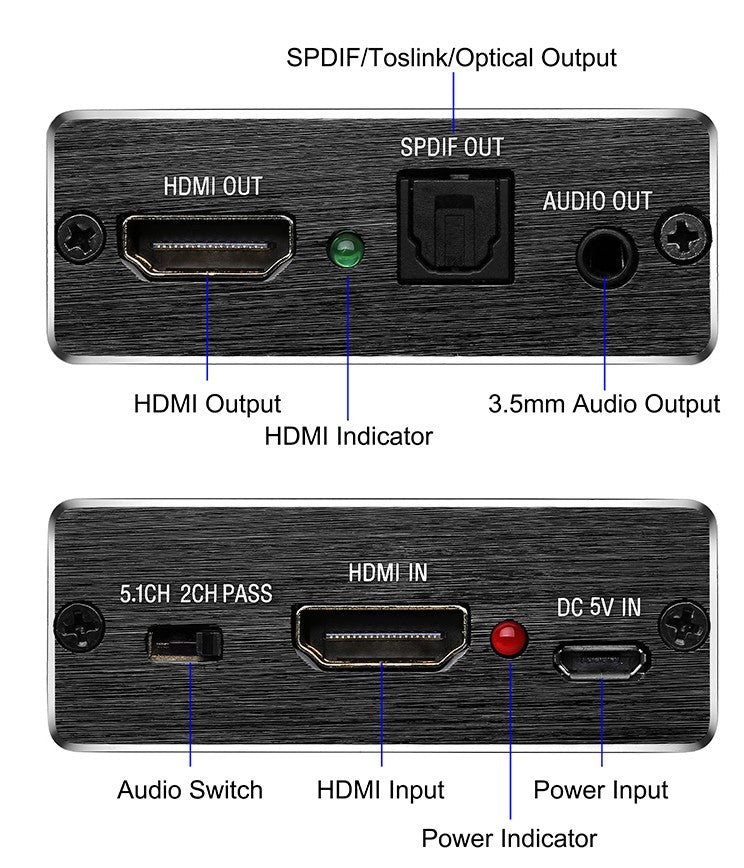

Iuput Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
3.5mm jack audio output format: 2CH PCM
SPDIF output format: PCM, AC3, DTS, 5.1CH Dolby Digital
HDMI audio output format: All formats including more advanced Dolby Digital Plus, PCM5.1CH and beyond
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA

Three switching audio EDID settings:

Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.

Package Contents:
1 X HDMI Audio Extractor
1 x 5V DC Power Adapter
1 X User Manual
