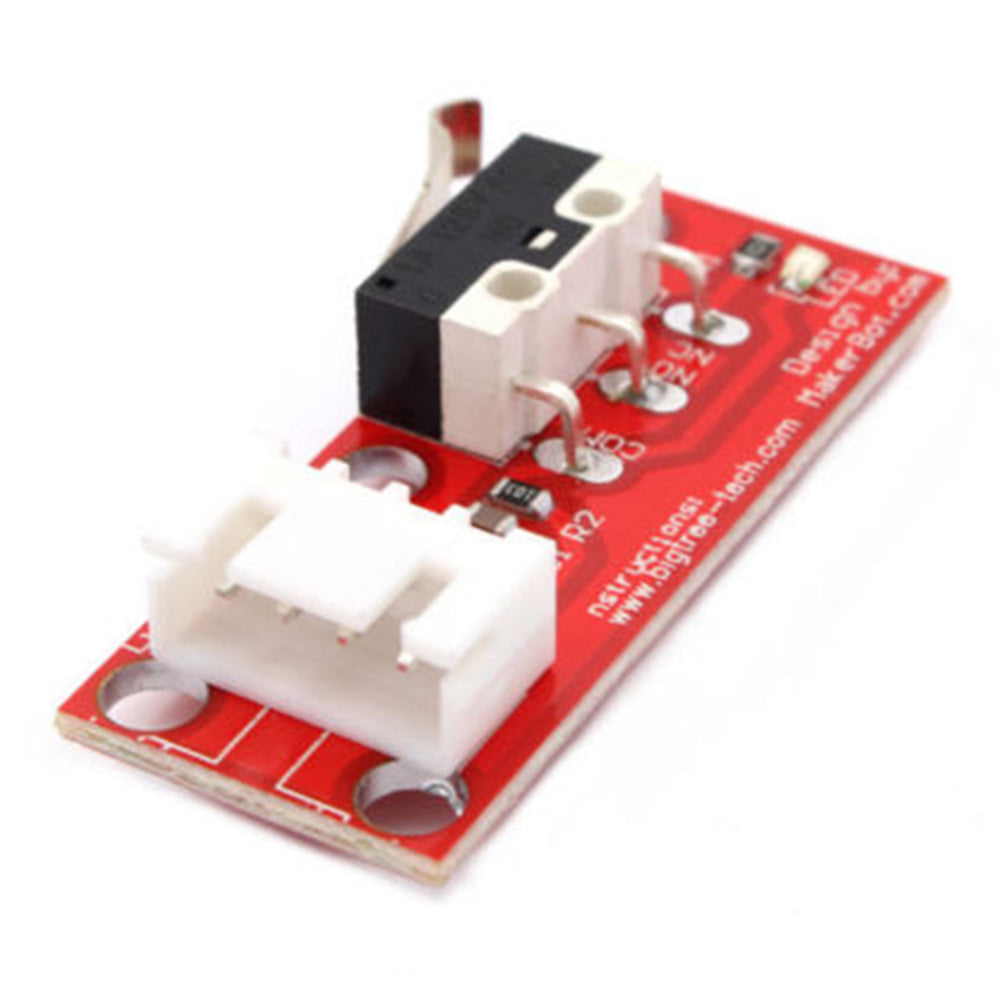

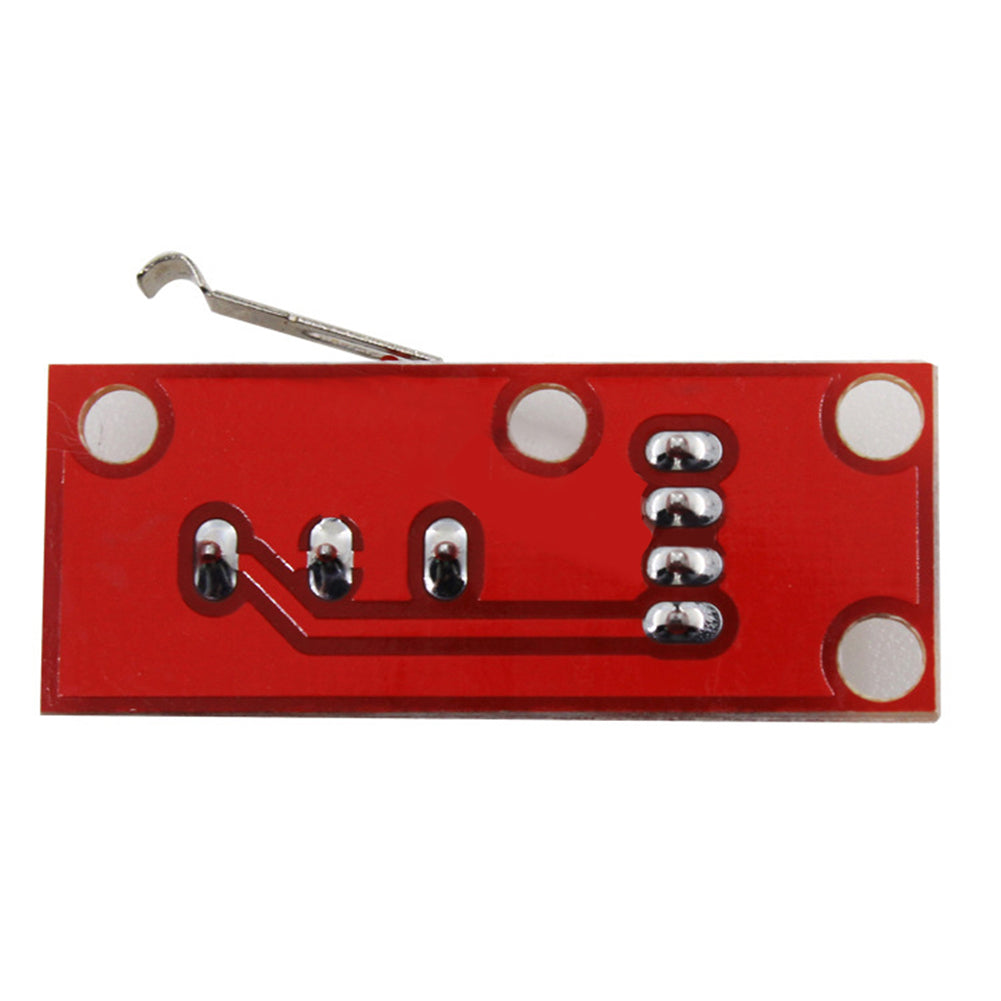

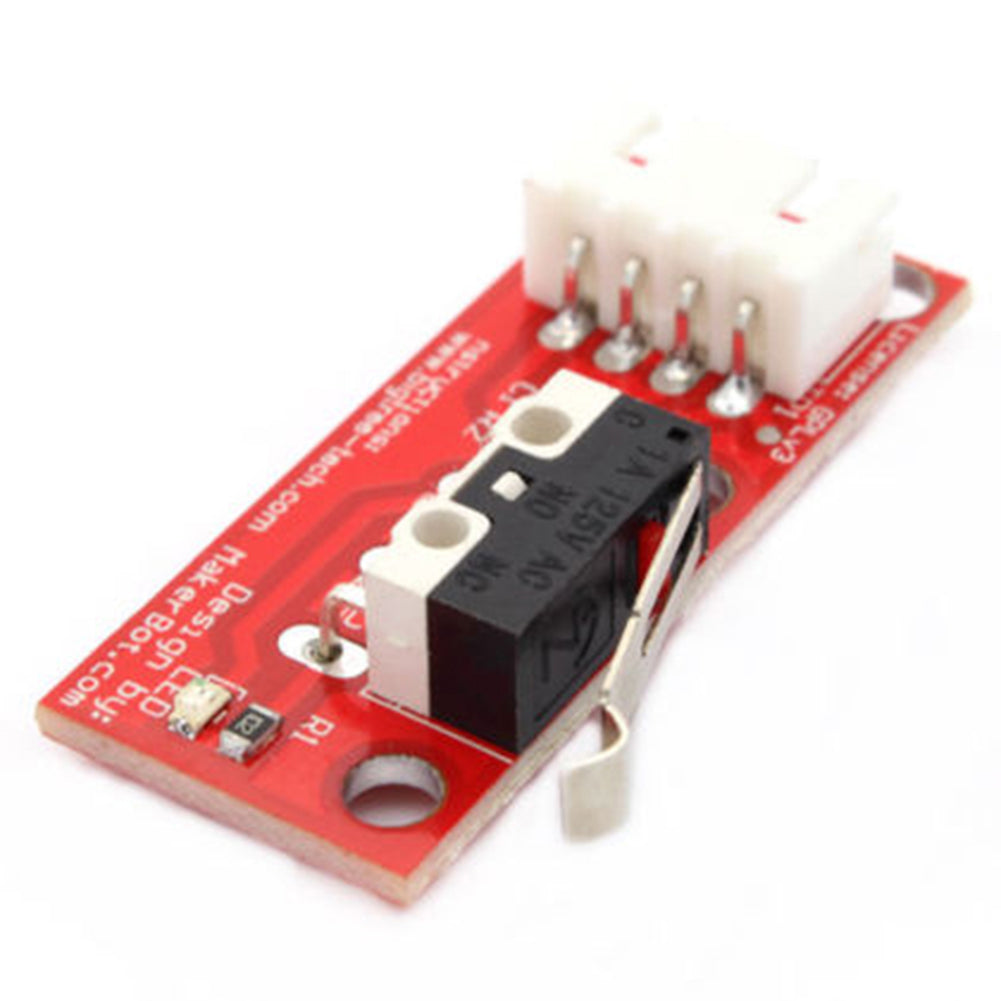

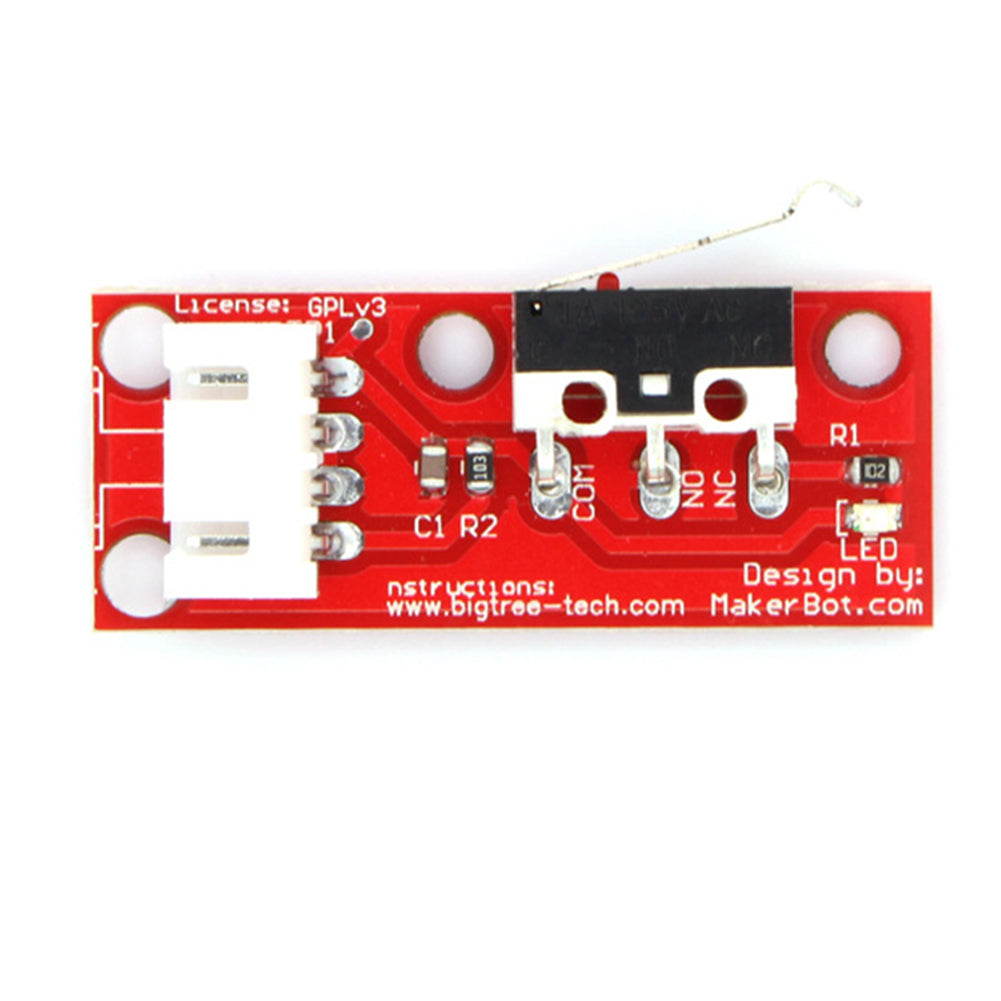

Mechanical Endstop Limit Switch without the Wheel for RepRap 3D Printer RAMPS 1.4

Specifications:

It using 22AWG wire, copper wire inside is very thick, can be resistant to 2A current, 300V voltage.

The insulating layer has a wide range of temperatures up to 80 degrees.

Not easy to break, convenient to use.



Type: Limit Switch

Application: for RepRap 3D Printer

Cable Length: 70cm/27.56" (Approx.)

Connection Instruction:

Red Wire Connection: VCC(for RAMPS "+")

Black Wire Connection: GND(for RAMPS "-")

Green Wire Connection: SIGNAL(for RAMPS "s")

Tips: The system must be configured with at least three mechanical switches normally.



Notes:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.

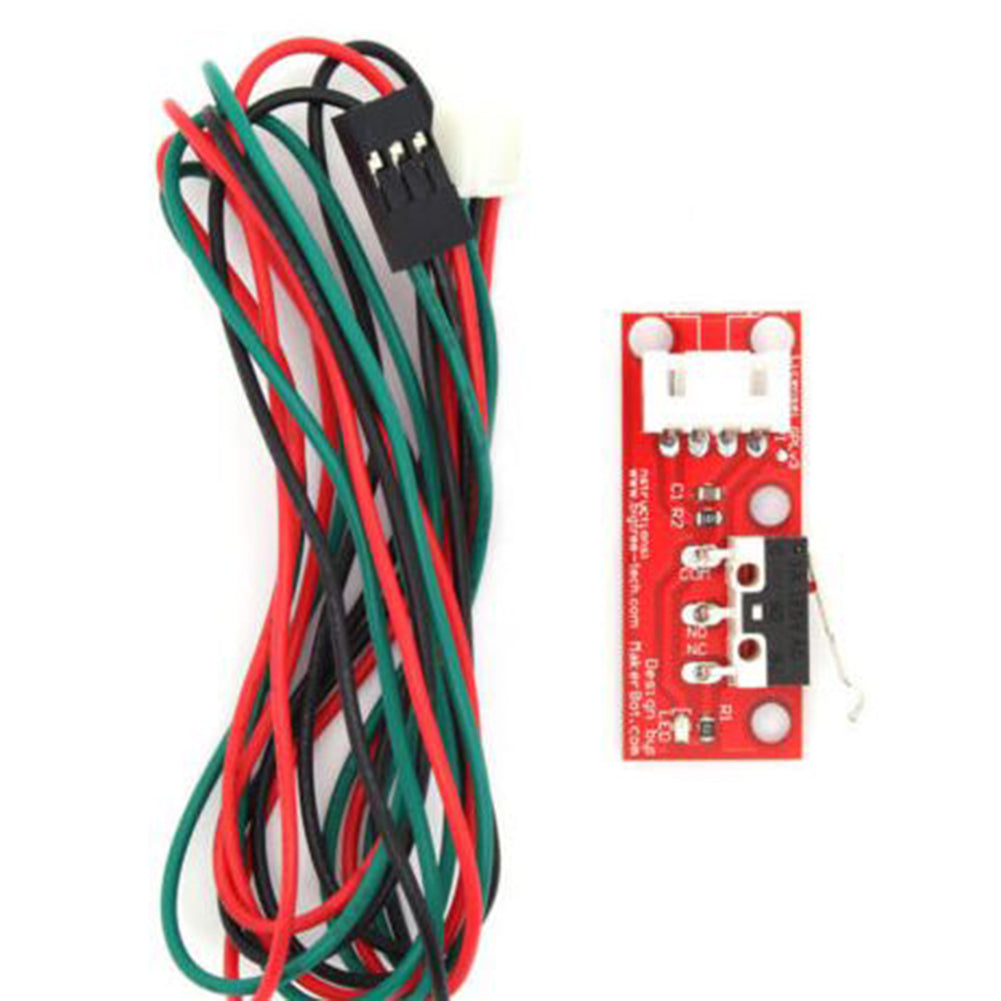

Package Includes:

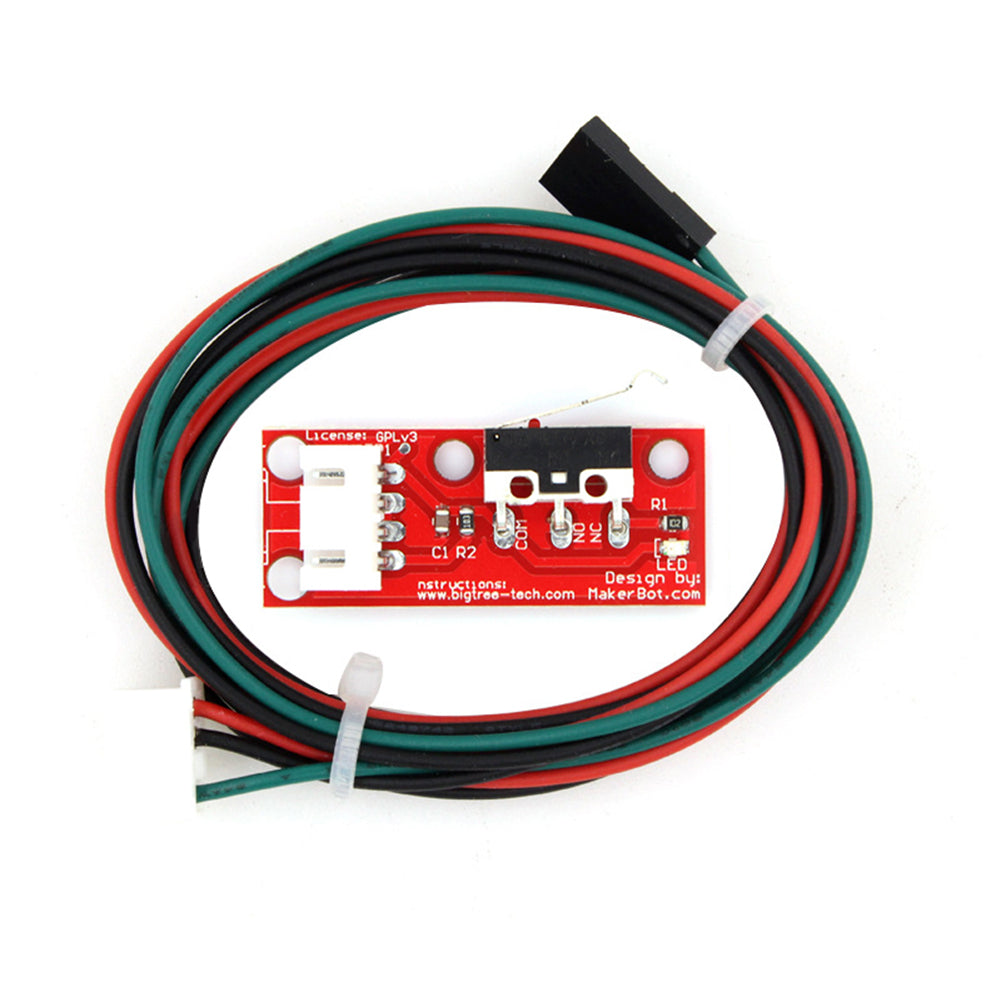

1 x Mechanical Endstop

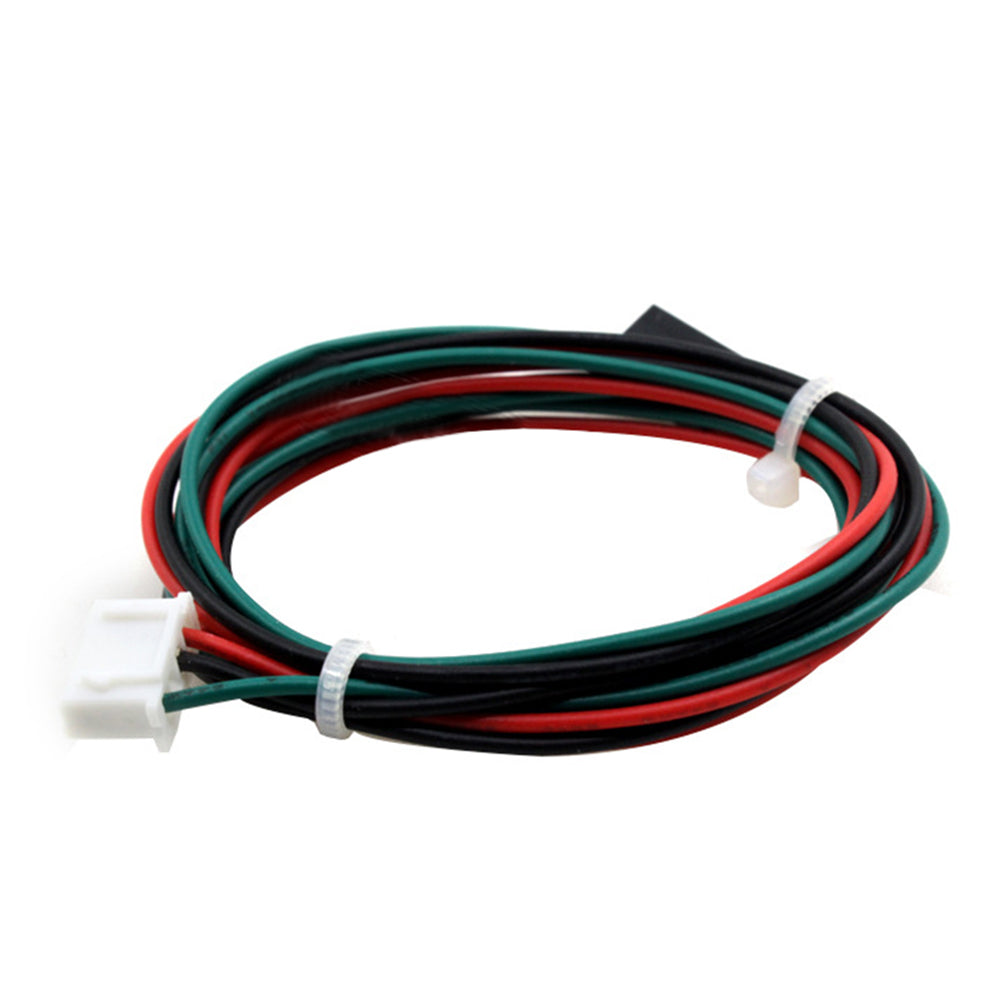

1 x 3-pin Cable
