Features:
1 IPS10.1 inch (1280x800) high resolution CCTV LCD monitor.
2 IPS monitor, with oustanding image quality, high sensitivity, strong anti-jamming.
3 Suitable for CCTV monitor, mini PC monitor or other video monitor.

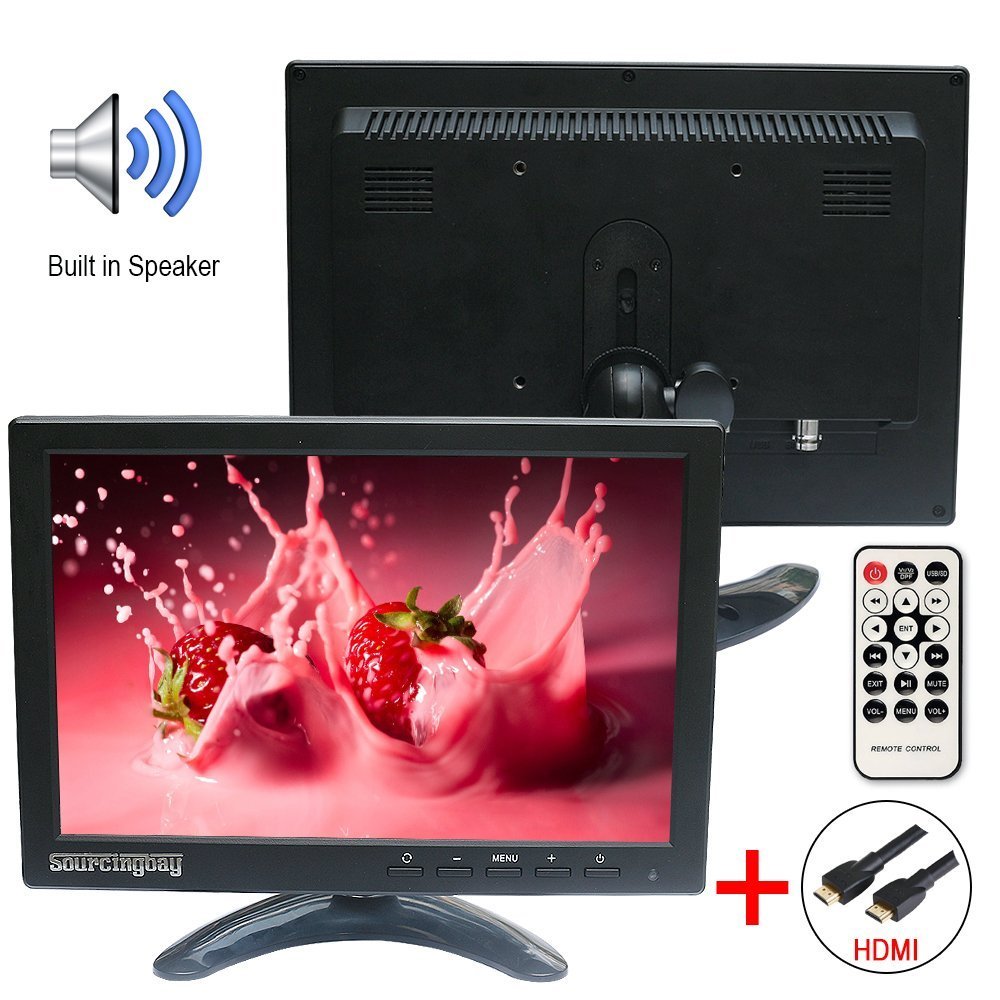

4 Remote controller, built in 2 speakers,1 USB slot which can be as a multimedia photo, music and movie Player.
5 Mini size CCTV monitor, portable to carry and store.
6 BNC lcd monitor,with BNC interface,ideal for professional surveillance monitor, can achieve the best effect of signal. (1080P BNC camera or some special camera is not supported)
Specification:
Screen Size: 10.1"
Aspect Ratio: 16:9/4:3/Auto
Screen Resolution: 1280 (H) x 800 (V) pixels
Screen Brightness: 400 cd/m^2
Screen Contrast: 400:1
View Angle: H: 160° ; V: 160°
Video Input: AV, VGA, BNC, HDMI

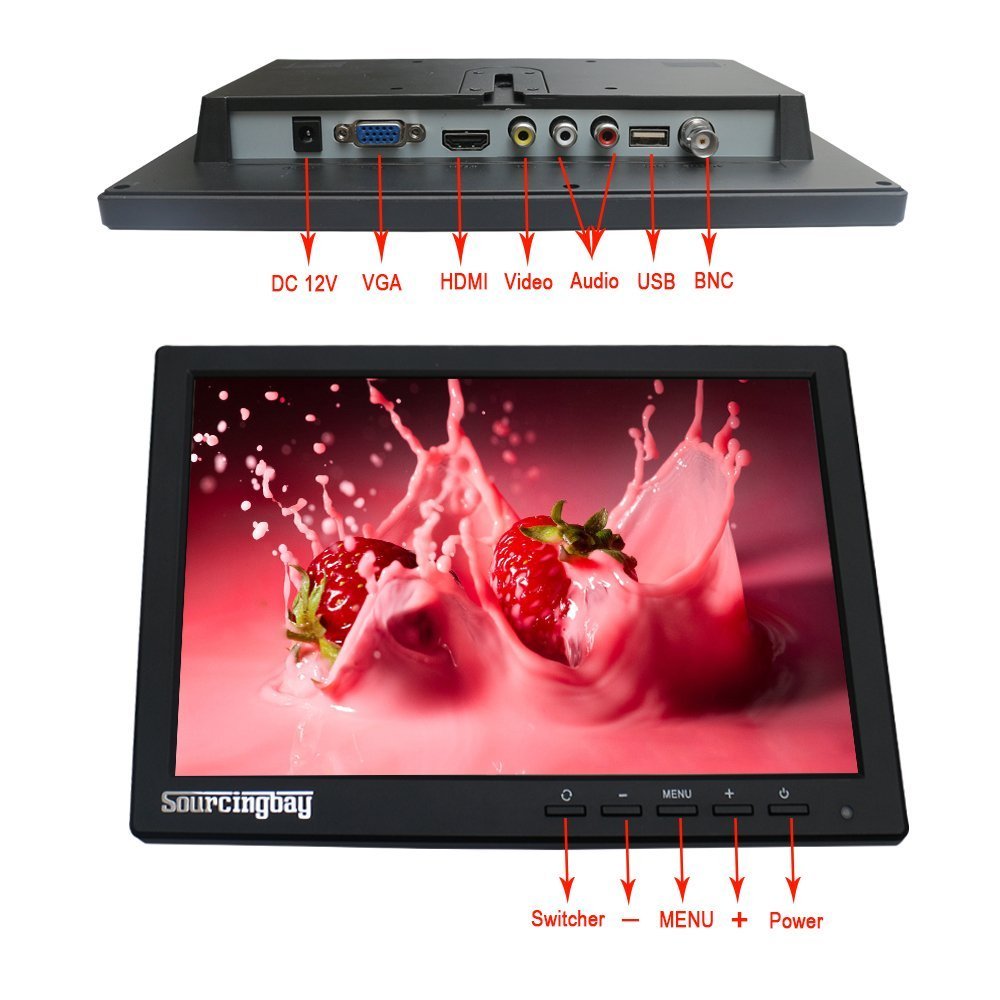

Interface Ports:
HDMI, VGA, BNC, RCA, USB, Left/Right audio, DC 12V Power input
Feature: Built-in 2 speakers
Video System: PAL, NTSC
Power:
Input AC 100~240V, 50~60Hz (worldwide voltage). Output: DC 12V, 2A
Material: ABS

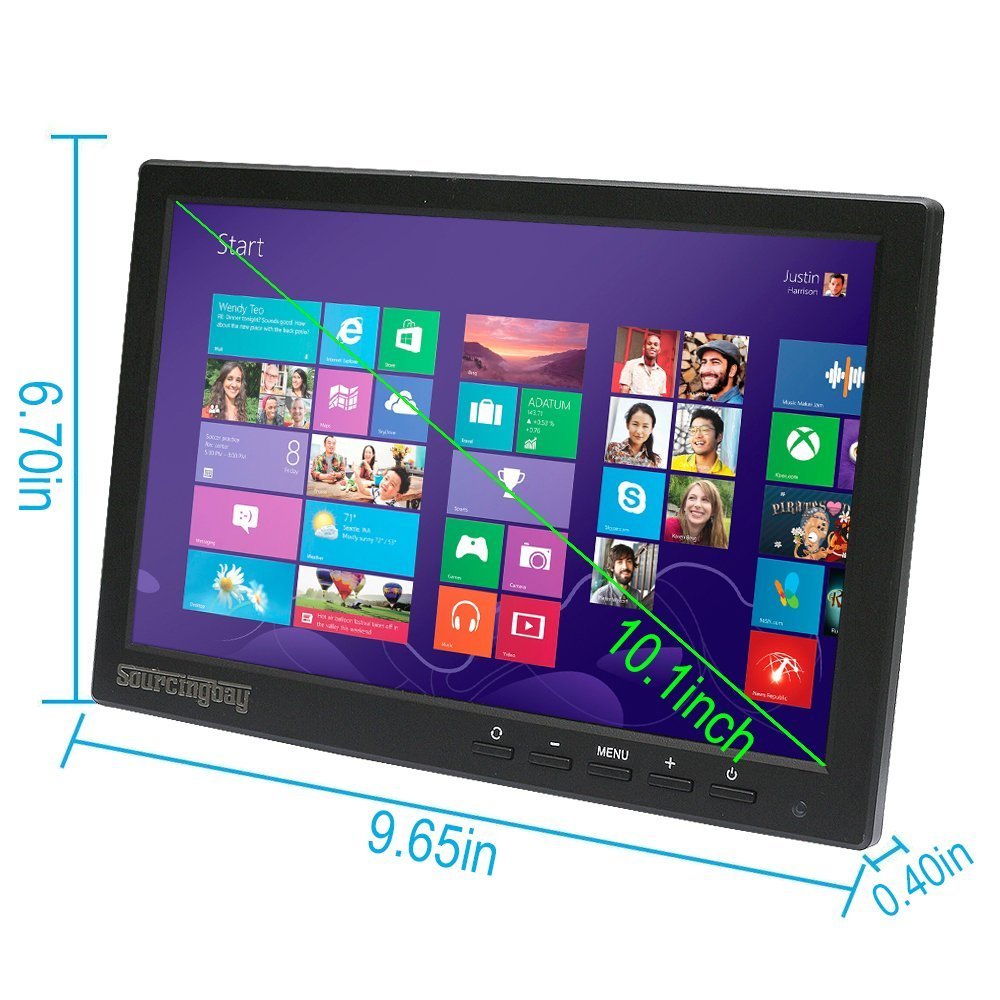

Dimension: 9.65 x 6.7 x 0.4 inch
Kind reminder:
Any question, please email us for technical support and find best solution for you. We will reply within 24 hours.
Troubleshooting:
1. ON/OFF indicator not light up.
Please Check the power.
2. No image/Blue Screen with word 'No signal'.
a. Ensure the monitor is powered and turn on.
b.Check if connection between video input device and monitor is OK.
c.Select correct signal input mode by remote control or buttons on monitor. It should match signal connection type. If you use HDMI cable to link video input device and monitor, then select 'HDMI'as input signal mode.
3. Remote does not work with display.
Please remove the battery saver, or try buttons on the monitor.
Note:
Since this monitor has to work with video input device, to judge if the defective is caused by user's video input device or the monitor, it is better to replace cables, video input device, other monitor to check.
