Supports ISO 9141, KWP2000, CAN bus
Specifications:
Operating voltage: 12V, internal protection from short circuits/overvoltages
Nominal idle current: 45mA

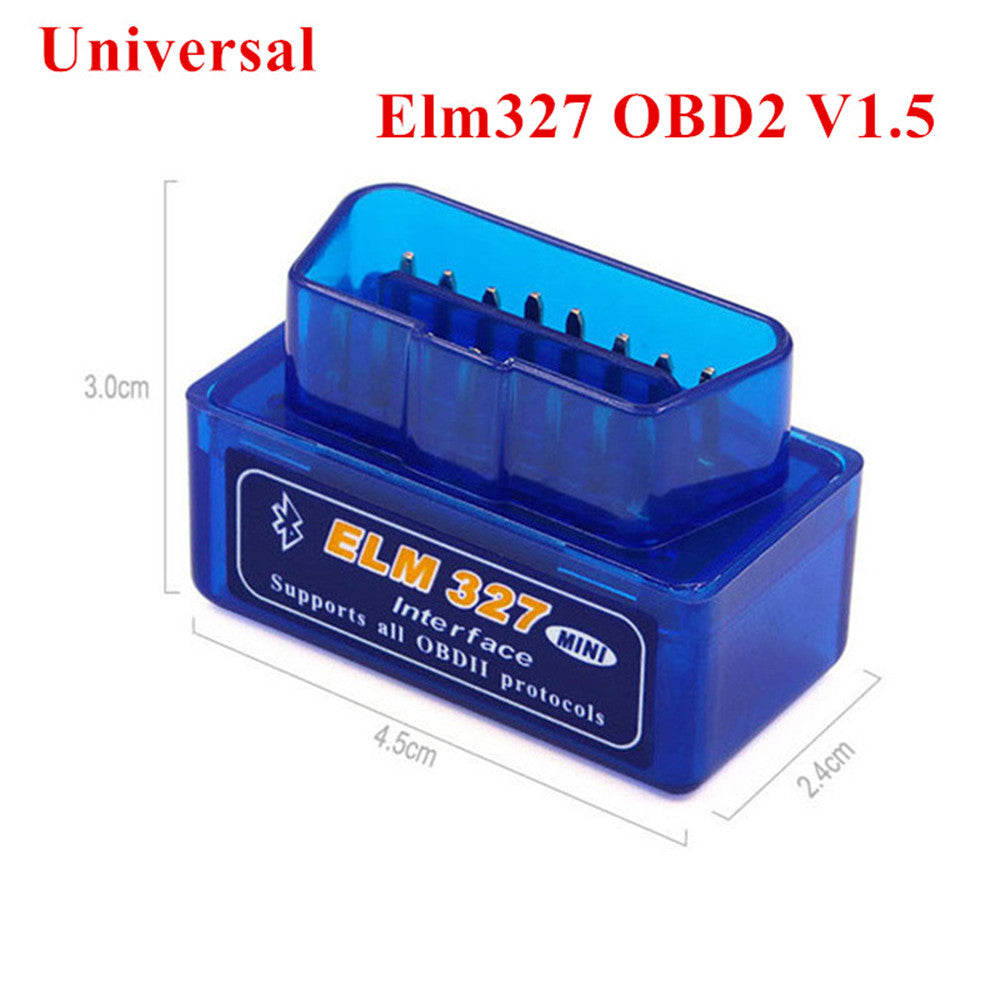

Item Size: 4.7 * 3.2 * 2.3cm
Item Weight: 22g
Package Weight: 53g
Package:
1 x New V1.5Blue Super MINI Bluetooth ELM 327 OBD2 / OBDII ELM327 Auto Diagnostic Scanner Tool

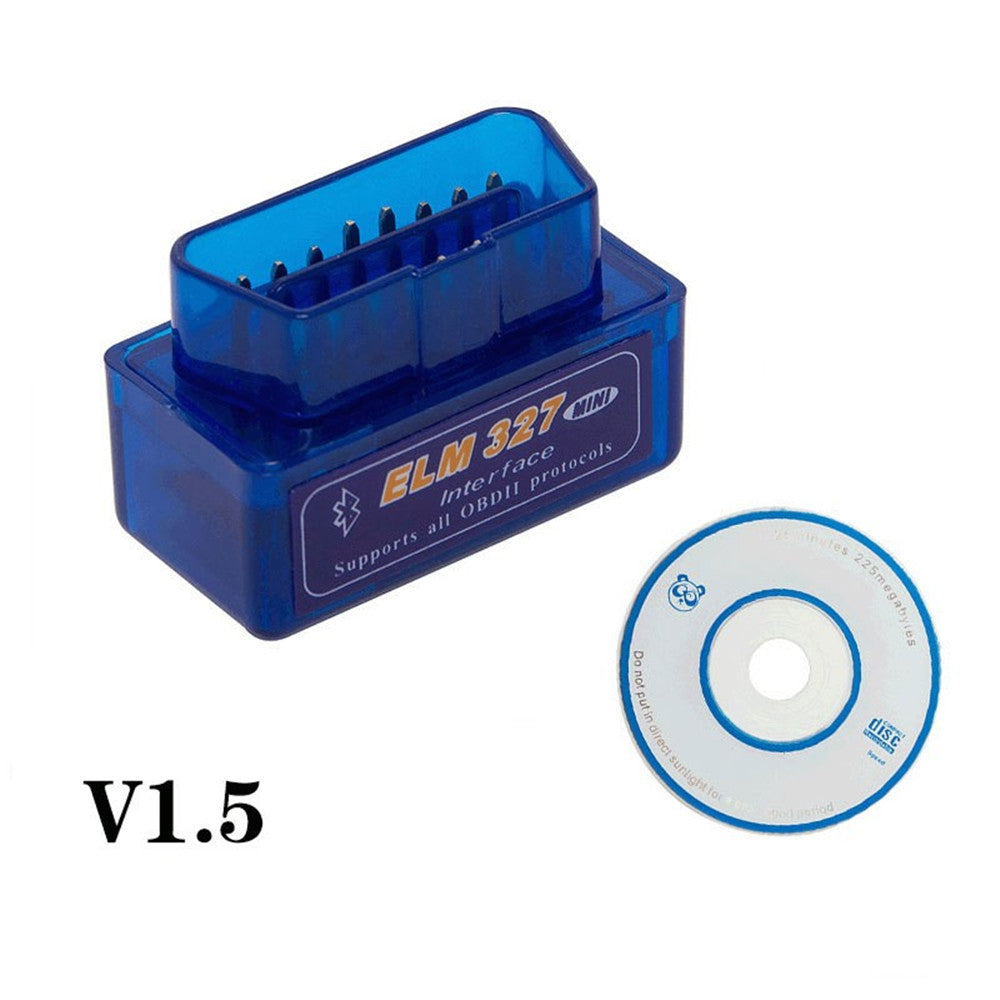

1 x CD driver
Support OBDII Protocols:
The adapter does not support all protocols. Please check the protocols of your car model before you make order. We do not accept dispute caused by protocol problem.
Automatic
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
*default settings (user adjustable)
Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others
