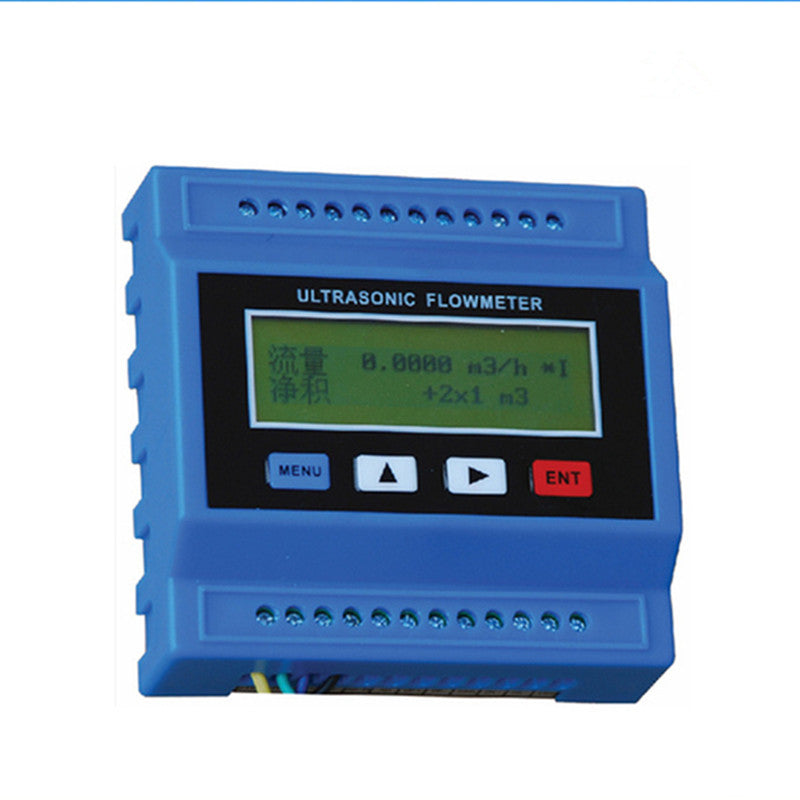

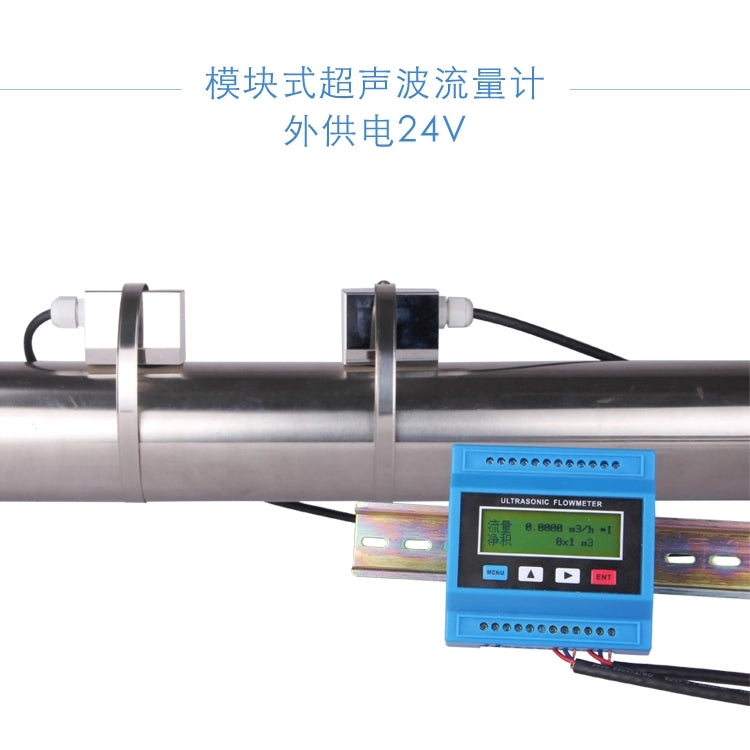

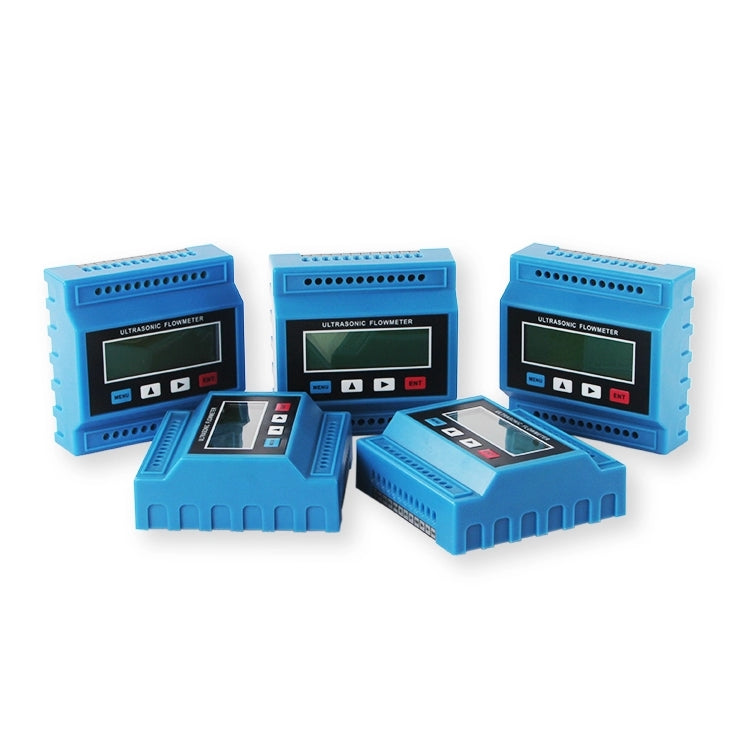

TUF-2000M-TS-2 Digital Ultrasonic Flowmeter Flow Meter Ultrasonic Flow Module RTU with TS2 transducer (DN15-100mm) -30 to 90C

Features

Description

High accuracy

Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than +-1%

Wide measuring range

Several types transducer for selection, pipe size from DN15mm to DN6000mm

Far transmission distance

Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m

Powerful Functions

Current output: 4-20mA, one channel, can be used for flow/heat transmitter;

OCT output: two channels, can be used for flow /heat switch;

Current input: 4-20mA, three channels, can be used for data collector;

Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.

Wide Application

Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.
