VIS FISH 4 wireless fishing camera Quick ?peration manual
1: APP download
? First please search VIS FISH in the APP Store. Android phone scans the following
QR Code into the Gompanywebsite to download.
? Please scan the QR code in the user man- nual to gettheAPP then install it.

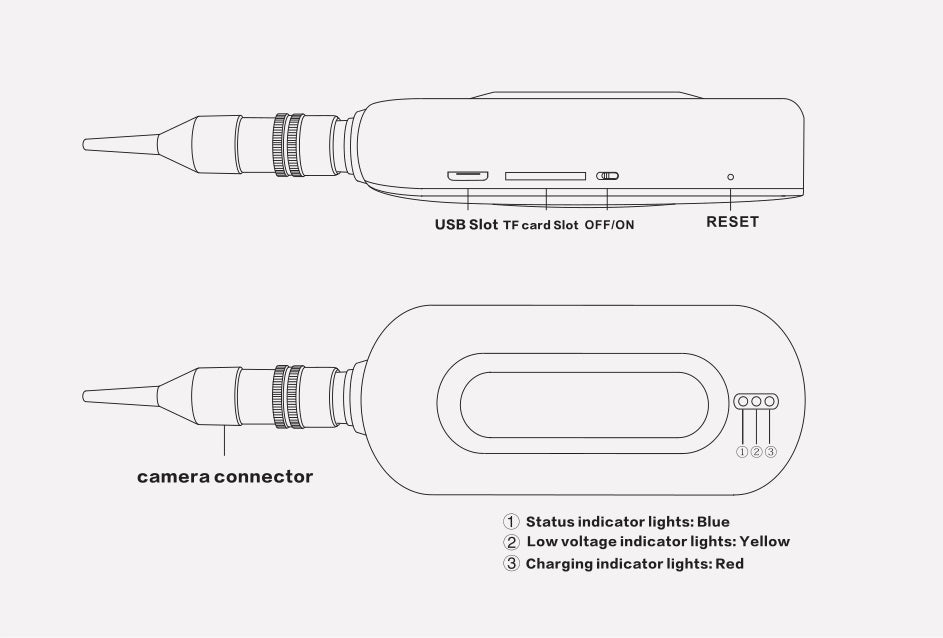

2:lndicator/ lnterfaGe
? Redlight: charging indicatorlight, redlight 0N when charging, the battery is full of red
light OFF.
?Yellowlight: battery capacity indicatorlight, when the battery voltage islowerthan3.7V,
the yellowlightturn on and need to charge the battery in time
? Bluelight: working status indicator, the blue light flashes once in5 seconds ofAP mode,,the bluelightflashes twice in5 seconds of IP
mode.
3:Basic operation
? Power ON: First connect the camera data cable, switch the button to ON, the working
status indicator light(Blue light)will be ON then OFF, the stick will beAP/lP match connecting the blue indicator light is flashing after 1 minute and the stick is in AP/IP security mode.
TheBluelightisflashingonce1 minute
then the stick is in AP mode, usercan security
view, take photo and record the video in the
VIS FISH APP software.
The Blue light is flashing twice 1 minute then the stick is in IP mode, user can remote security view, take photo and record the video in the VIS FISH APP software.
? PowerOFF: switch the button to OFF,the stickwill be closed and all working status
indiGatorwill be OFF.
? Charging: when the yellowlight is 0N,,please connect to power adapter5V to charge the stick, when it is charging, the yellowlight is OFF and redlight is 0N, when the charging
battery is full thenledlight is OFF.

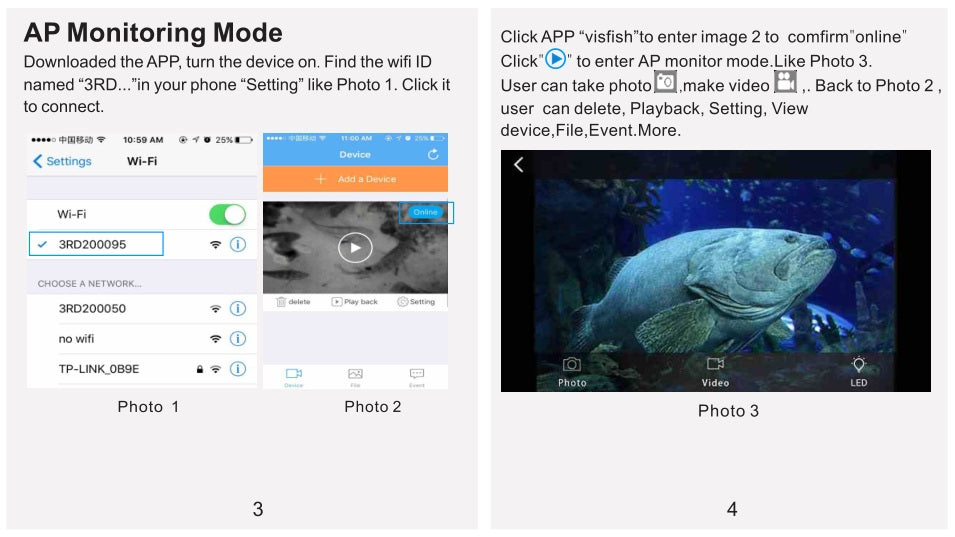

4:The config operation in mobile AP mode
? The blue lightisflashingafterthestick poweron1 minutelater, pleasegetthe
correspondinglD number in the WIFl listand click it(Photo1)
? When the installation is completed and
device is online, please click the middlebutton to enterthe real time monitoring, record, take photos and playback.

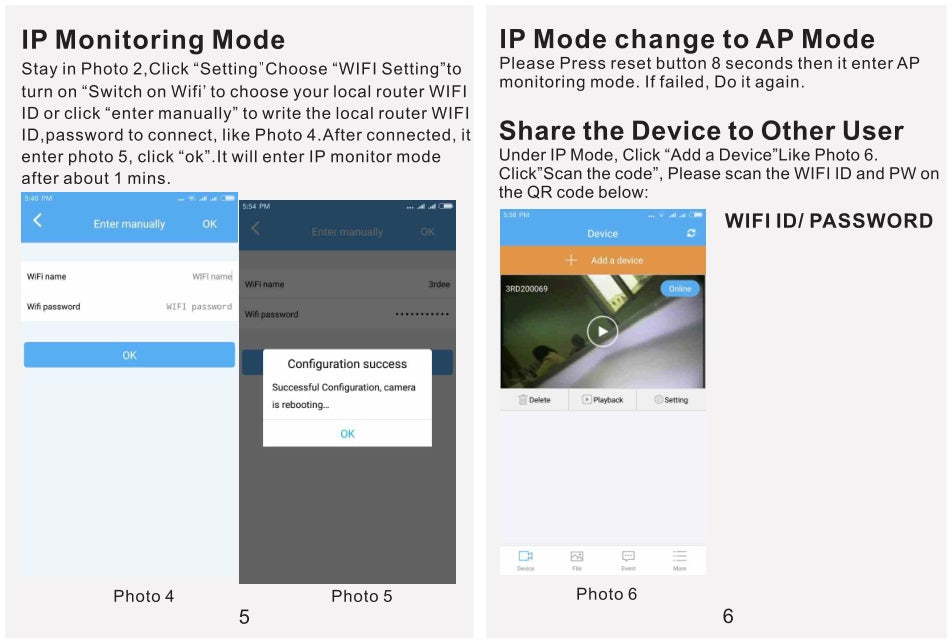

5:Remote operation of mobile IP mode
? Clickon the WIFl settings, selectthe
configure WIFl, then enterthe WIFl password
confirmation, the device reboot. the completion oftheWIFl configuration1 minutelater, enter
thelP mode. Please selectthe WIFl then can viewthevideo.
6:Special Notes
? The device ofTF memory card is not plug
and play, please insertthe TF card then power on,Please click the reset button for8 seconds
when switch thelP mode toAP mode,,? Please clickthe reset buttons for8 seconds ifwe could not search the device for the first
time.
? The videofile saved in the TF card can be played in the playerwhich should be download in our company website.
? Please kindly save your QR code,,equipment name and password

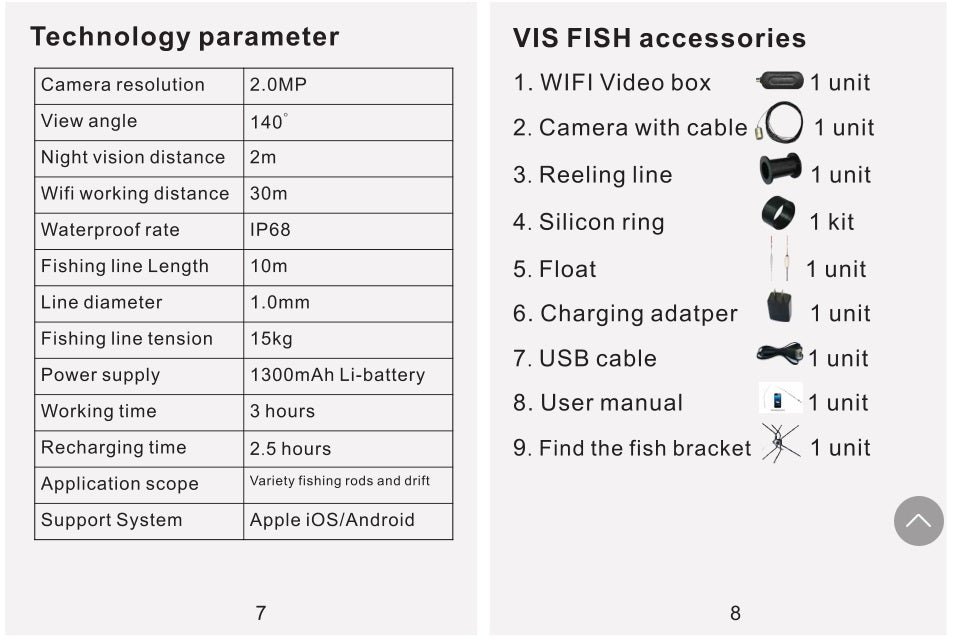

VIS FISH4 technology parameter
Camera resolution 2.0MP
View angle 140°
Nightvisiondistance 2m(1600lmlRlights*8)
Wifi working distance 30m
Waterproof rate 30m
FishinglineLength 10m
Line diameter 1 Omm
Fishinglinetension 15kg
Power supply 1300mAh Li-battery
Working time 3 hours
Recharging time 2.5hours

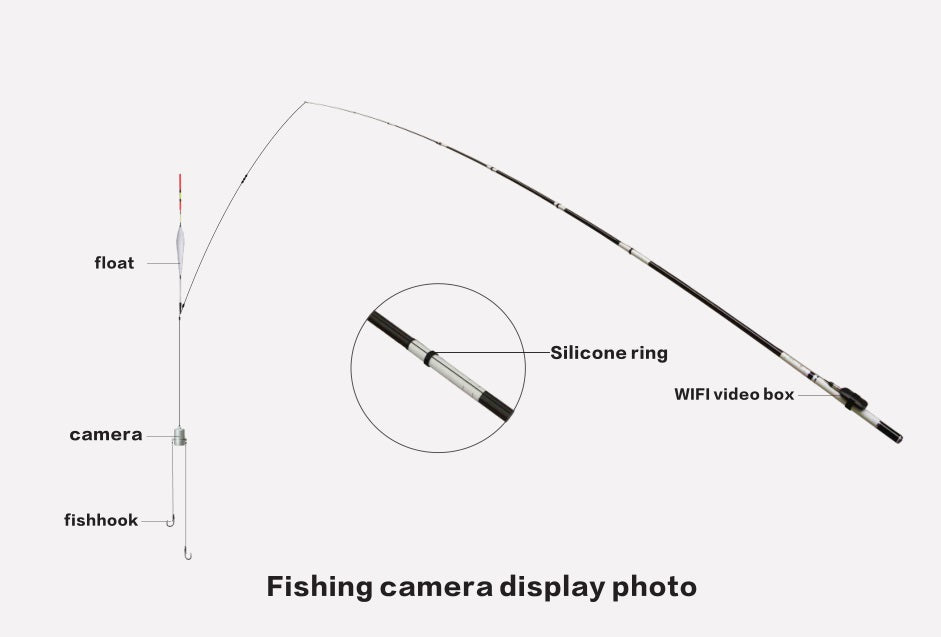

Application scope Variety fishing rods and drift
Support System Apple iOS/Android
